AS29MB

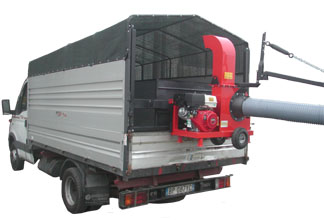

VACUUM CLEANERS ASP29MB WITH AUXILIARY ENGINE TO BE FITTED AT THE END SIDES OF LORRIES
Aspirator mounted on a self-supporting frame, to make small movements, equipped with wheels and special hooks for application to the rear side of trucks. Complete with Honda 13HP petrol engine. Application suction inlet prepared for pipe diameter mm 150 or 200
|
Auxiliary Engine |
HONDA GX390 13 HP |
|
Impeller rpm |
3.600 |
|
Impeller blades |
N. 8 |
|
Maximum length pipe |
Mt. 8-10 |
|
Suction pipe as standard/on request |
diameter mm 150 / 200 |
|
Pipe aspired air 150 /200 |
cubic meters/min 38 / 63 |
|
Air expelled max speed mt/min |
2500 |
|
Size cm |
110*60*133 |
|
Weight Kg. |
130 |
ACCESSORI A RICHIESTA
 |

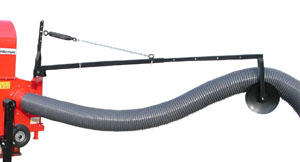

K 16 Support kit for suction pipe diam. 150 or 200. In the collection phase it makes less burdensome and more practical the work of the operator who must not shift the weight of the whole pipe; the kit makes sure that the tube does not touch the ground allowing a better maneuverability of the suction inlet for easier material collection. |
