BRUSHING MACHINE WITH COLLECTION

TO CLEAN ROADS AND SQUARES WITHOUT CREATING DUST

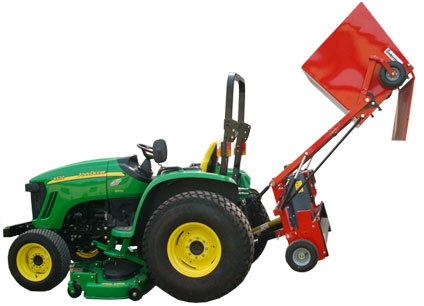

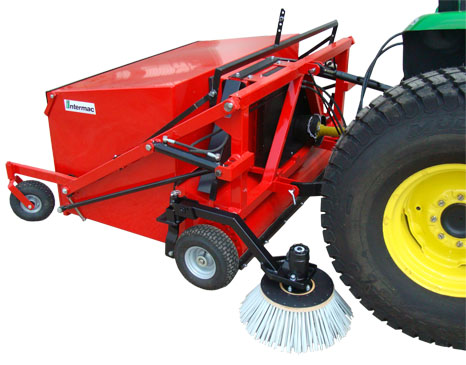

The NEW brusching machine SPX has been designed and built for those who need to clean roads, large squares, sheds, stables and any other place where you have to collect light materials WITHOUT CREATING DUST; the brushing machine with collection is applicable to the rear lift of medium-sized tractors, on request it is equipped with a side cup brush for cleaning near raised pavements and fence walls automatically adapting to the edge.

Scarica PDF

Techinical Data
- Mechanical transmission Power take-off 540 giri/m’.
- Attack to 3 points category 1
- Working widths cm 120-150
- Capacity of the collection basket lt.500-700
- Hydraulic discharge at minimum 120 maximum 180 from te ground.
- Dry dust filter.
- Power input HP 15 Kw 11,5;
- Minimum power of the tractor HP 25/30
- Minimum Weight of the tractor about kg. 1200-1500
- Empty Weight of the brushing machine Kg.330-400
- Overall dimension 150x160 h110
 180x160 h110

Machine supplied complete with:
- Cardan shaft

On request:
- Side cup brush diam. cm 55
