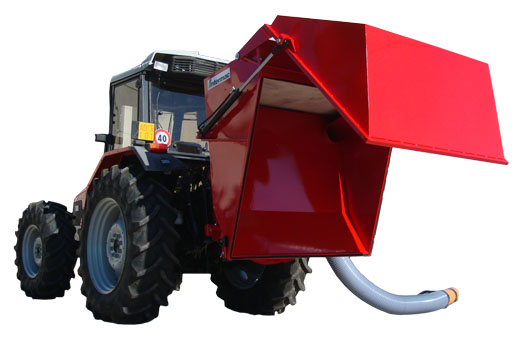

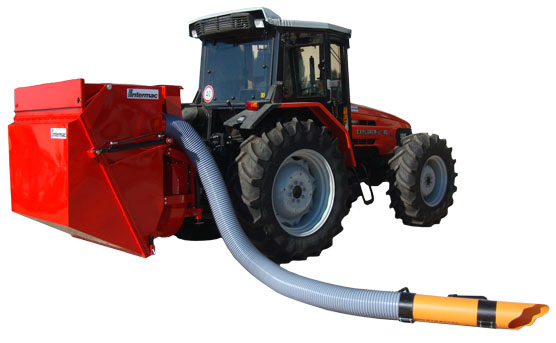

This large capacity container, UNIQUE in its power, can be used for the collection of any resistant body such as coffee, hazelnuts, chestnuts and the like without in any way altering the integrity of the product collected because the vacuum works in vacuum.

The construction of the equipment is completely made of steel, thatis equipped with a powerful depression with an impeller of 630 cm and nr.10 converse blades, complete with a filter that divides the vacuum container from the turbine that creates the vacuum and a large container with capacity 1.5 m³ to contain the product aspirated.

Newly designed machine designed to reduce the processing time in the collection, reduce the cost of investment as it can be applied to a tractor already owned.

• Capacity of the basket lt. 1500
• Basket opening via two hydraulic cylinders
• Removable filter in cotton cloth (polyester) with a surface area of m² 2.9, filtering degree 32.
• Impeller with 10 blades diameter mm 630
• Speed max PTO 540 rpm, impeller 3240
• Multiplier with inclined teeth in oil bath.
• Depression in aspiration mm/H²O 66
• Aspirated air with 200 diameter tube and clean filter
• Maximum capacity 6.000 m³/h
• Net Weight Kg. 420
