POWER FOR PROFESSIONALS
ASF390-391 Series

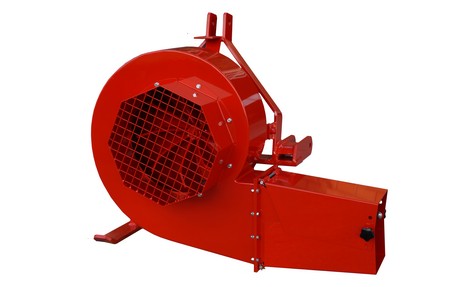

BLOWER model ASF390-ASF391SG
blowers with fixed discharge (ASF390) or swivel discharge (ASF391) applied front or rear on tractors from 20 to 40 HP; high expelled air flow blowers for high working performance; perfect for cleaning parks, sports fields, golf courses, large areas and similar.

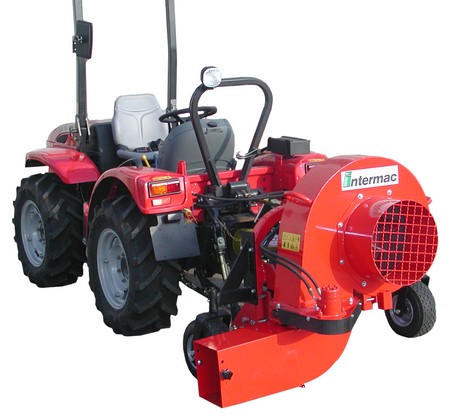

The ASF391SG version, thanks to the 180 rotation, by means of hydraulic engine of the air exhaust, can clean left, right and front by a simple tractor movement. Air discharge adjustable according to the different conditions; possibility of transformation of the blower into an aspirator. Supplied complete with cardan.
ON REQUEST
Supplied with hydraulic operation.
Supplied with N. 2 wheels complete with support that allow continuous work even in the presence of rough terrain (only for ASF391/SG)
15° degree tilt of discharge down or up to improve the working quality (only for ASF391/SG)
|
TECHNICAL DATA |
ASF390-ASF391/SG |
| Front or rear application | 1^ and 2^ Categories |
| Power take-off revs/min | 540 or 1000 |
| Impeller with N. 8 blades | Diam. cm 39 |
| Air expelled max Speed mt/min | 2500/2700 |
| Air expelled max Quantity cubic meters/h | 4500/5000 |
| Weight Kg. | 130 |
| Size cm | 110*70*H95 |
